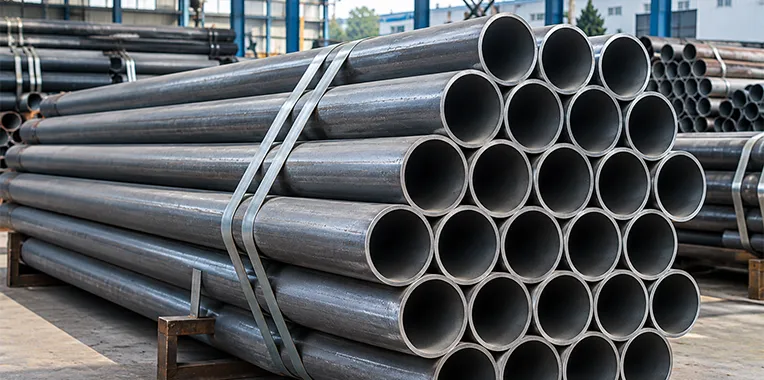

Ganpat Metal supplies Carbon Steel IS 3589 Pipes for large-diameter piping requirements in water and sewage infrastructure and other applications where the specified material and dimensions are suitable. Available grade options include Fe 330, Fe 410 and Fe 450, subject to supply availability and the applicable specification.
For procurement enquiries, buyers can share their required outside diameter, wall thickness, grade, pipe length, quantity and inspection requirements. GM can assess the specifications and provide a quotation based on the confirmed product and delivery requirements.
GM handles enquiries for IS 3589 carbon steel pipes where buyers need to match pipe dimensions and material grade to project drawings or purchase specifications. The supplied reference covers large-diameter sizes beginning at 168.3 mm outside diameter, with different wall thickness and theoretical weight options.
Grade selection should be based on the mechanical properties and chemical composition required by the project. Buyers should also confirm the applicable standard edition, manufacturing process, inspection requirements and documentation before finalizing an order.
| Specification | Details |
|---|---|
| Product | Carbon Steel IS 3589 Pipe |
| Standard | IS 3589, applicable part and edition to be confirmed |
| Referenced Grades | Fe 330, Fe 410 and Fe 450 |
| Outside Diameter Range | Supplied reference begins at 168.3 mm; confirm the required size range |
| Nominal Bore Options | 150 mm NB and above, as listed in the supplied reference chart |
| Wall Thickness | Varies by outside diameter and order specification |
| Manufacturing Process | Confirm the required and available manufacturing method |
| Length | As specified in the purchase order and confirmed availability |
| End Preparation | As specified in the purchase order |
| Testing | Chemical, mechanical and other applicable inspection requirements |
| Documentation | Material test documentation and traceability, as agreed |
| Supply Markets | India and the listed international markets |
Chemical composition is one of the checks used to establish whether the supplied material meets the specified grade. The following table reproduces the reference ladle analysis limits provided for Fe 330, Fe 410 and Fe 450.
| Element | Fe 330 | Fe 410 | Fe 450 |
|---|---|---|---|
| Carbon (C) | 0.16% max | 0.20% max | 0.25% max |
| Manganese (Mn) | 1.20% max | 1.30% max | 1.30% max |
| Phosphorus (P) | 0.040% max | 0.040% max | 0.040% max |
| Sulphur (S) | 0.040% max | 0.040% max | 0.040% max |
| Carbon Equivalent (CE) | Not specified in supplied reference | 0.45 max | 0.45 max |
Mechanical properties help buyers assess a grade against the project’s specified strength and elongation requirements. The following values are from the supplied reference data.
| Property | Fe 330 | Fe 410 | Fe 450 |
|---|---|---|---|
| Tensile Strength (Rm) | 330 MPa min | 410 MPa min | 450 MPa min |
| Yield Strength (ReH) | 195 MPa min | 235 MPa min | 275 MPa min |
| Elongation (A), on 5.65√S₀ reference basis | 23% min | 20% min | 15% min |
Nominal bore, outside diameter, wall thickness and theoretical weight reference values.
| Nominal Bore (NB) | Outside Diameter (OD) | Wall Thickness (WT) | Theoretical Weight |
|---|---|---|---|
| 150 mm | 168.3 mm | 4.00 mm | 16.21 kg/m |
| 150 mm | 168.3 mm | 4.50 mm | 18.18 kg/m |
| 150 mm | 168.3 mm | 5.00 mm | 20.14 kg/m |
| 200 mm | 219.1 mm | 4.50 mm | 23.82 kg/m |
| 200 mm | 219.1 mm | 5.40 mm | 28.46 kg/m |
| 200 mm | 219.1 mm | 6.30 mm | 33.06 kg/m |
| 250 mm | 273.0 mm | 5.00 mm | 33.05 kg/m |
| 250 mm | 273.0 mm | 6.30 mm | 41.43 kg/m |
| 250 mm | 273.0 mm | 7.10 mm | 46.56 kg/m |
| 300 mm | 323.9 mm | 5.60 mm | 43.95 kg/m |
| 300 mm | 323.9 mm | 6.30 mm | 49.34 kg/m |
| 300 mm | 323.9 mm | 8.00 mm | 62.32 kg/m |
| 350 mm | 355.6 mm | 5.60 mm | 48.33 kg/m |
| 350 mm | 355.6 mm | 7.10 mm | 61.02 kg/m |
| 350 mm | 355.6 mm | 8.00 mm | 68.58 kg/m |
| 400 mm | 406.4 mm | 6.30 mm | 62.16 kg/m |
| 400 mm | 406.4 mm | 8.00 mm | 78.60 kg/m |
| 400 mm | 406.4 mm | 10.00 mm | 97.76 kg/m |
| 450 mm | 457.0 mm | 6.30 mm | 70.01 kg/m |
| 450 mm | 457.0 mm | 8.00 mm | 88.58 kg/m |
| 450 mm | 457.0 mm | 10.00 mm | 110.24 kg/m |
| 500 mm | 508.0 mm | 6.30 mm | 77.93 kg/m |
| 500 mm | 508.0 mm | 9.50 mm | 116.74 kg/m |
| 500 mm | 508.0 mm | 12.70 mm | 155.15 kg/m |
The supplied reference identifies the following cross-standard comparisons for buyers reviewing foreign project specifications.
| IS 3589 Grade | Referenced Comparable Grades |
|---|---|
| Fe 330 | ASTM A53 Grade A; DIN 1629 St 37.0; BS 3601 Grade 320 |
| Fe 410 | ASTM A53 Grade B; ASTM A106 Grade B; DIN 1629 St 44.0; API 5L Grade B |
| Fe 450 | ASTM A106 Grade C; DIN 1629 St 52.0; API 5L X42 / X46 |
These comparisons are reference points for technical review, not a guarantee of direct equivalence or interchangeability. Standards can differ in scope, chemistry, mechanical properties, manufacturing requirements, testing and acceptance criteria. Confirm any proposed substitution with the applicable standards, purchase specification and project engineer before ordering.
Need a specific IS 3589 size, grade or wall thickness? Send your requirement to our team for availability and pricing.
Select IS 3589 Pipe parameters and click the "Calculate Weight" button to reveal approximate weight.
For large-diameter pipe procurement, manufacturing requirements and inspection criteria should be established before the order is confirmed. The required process, dimensions, testing and documentation depend on the applicable standard and purchase specification.
The exact inspection scope and documentation should be agreed with Ganpat Metal before order placement. No particular manufacturing process, test or certificate should be assumed available unless confirmed for the required size and grade.
IS 3589 pipe selection should follow the applicable standard and the design requirements of the intended service. Large-diameter carbon steel pipes may be considered for projects such as:
Final suitability depends on the required grade, design conditions, dimensions, corrosion protection and applicable project specification. Confirm the intended service and any coating or lining requirements before placing an order.
Ganpat Metal accepts enquiries from Indian buyers sourcing carbon steel pipes for infrastructure, water-related projects and industrial requirements. Buyers can submit their requested grade, outside diameter, wall thickness and quantity for a supply assessment.
For project and bulk orders, include the applicable standard, dimensional requirements, inspection scope and delivery location. Availability and lead time should be confirmed for the exact size and specification before the purchase order is finalized.
Ganpat Metal handles export enquiries for carbon steel pipes, subject to confirmed product availability, order specifications and shipping arrangements. International buyers can provide their technical requirements and destination details to support quotation and delivery planning.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For other carbon steel pipe grades, sizes and configurations, see our Carbon Steel Pipes range.
Contact Ganpat Metal with your requirements for a quotation based on the required grade, dimensions and order conditions.
| Requirement | Details to Provide |
|---|---|
| Grade | Fe 330, Fe 410 or Fe 450 |
| Outside Diameter | Required OD in millimetres |
| Wall Thickness | Required WT in millimetres |
| Length | Required pipe length |
| Quantity | Number of pipes or total length |
| Inspection | Required testing and documentation |
| Project Specification | Applicable standard and any special requirements |
| Delivery Destination | Indian location or export country |
Providing these details helps establish the required pipe configuration and clarify the conditions for supply.
