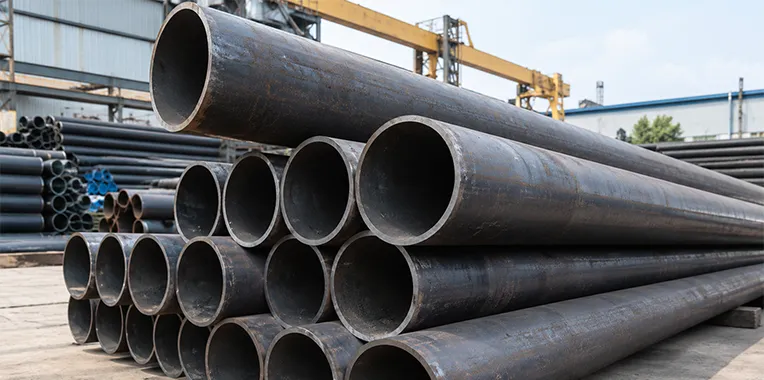

Ganpat Metal manufactures and supplies Carbon Steel Pipes in seamless, ERW, welded, fabricated and CDW configurations for industrial piping, process systems, power plants, refineries, water transmission and engineering projects.
Carbon steel pipes are supplied to ASTM, ASME and API specifications with different grades, sizes, schedules, lengths, forms and end finishes to match project and procurement requirements.
| Carbon Steel Pipe | Specifications |
|---|---|
| Standard | ASTM, ASME and API |
| Pipe Size | 1/2" NB to 36" NB |
| Tubing Size | 1/2" to 6", OD and NB sizes |
| Thickness | 7.00 mm to 50 mm, custom OD and thickness |
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |

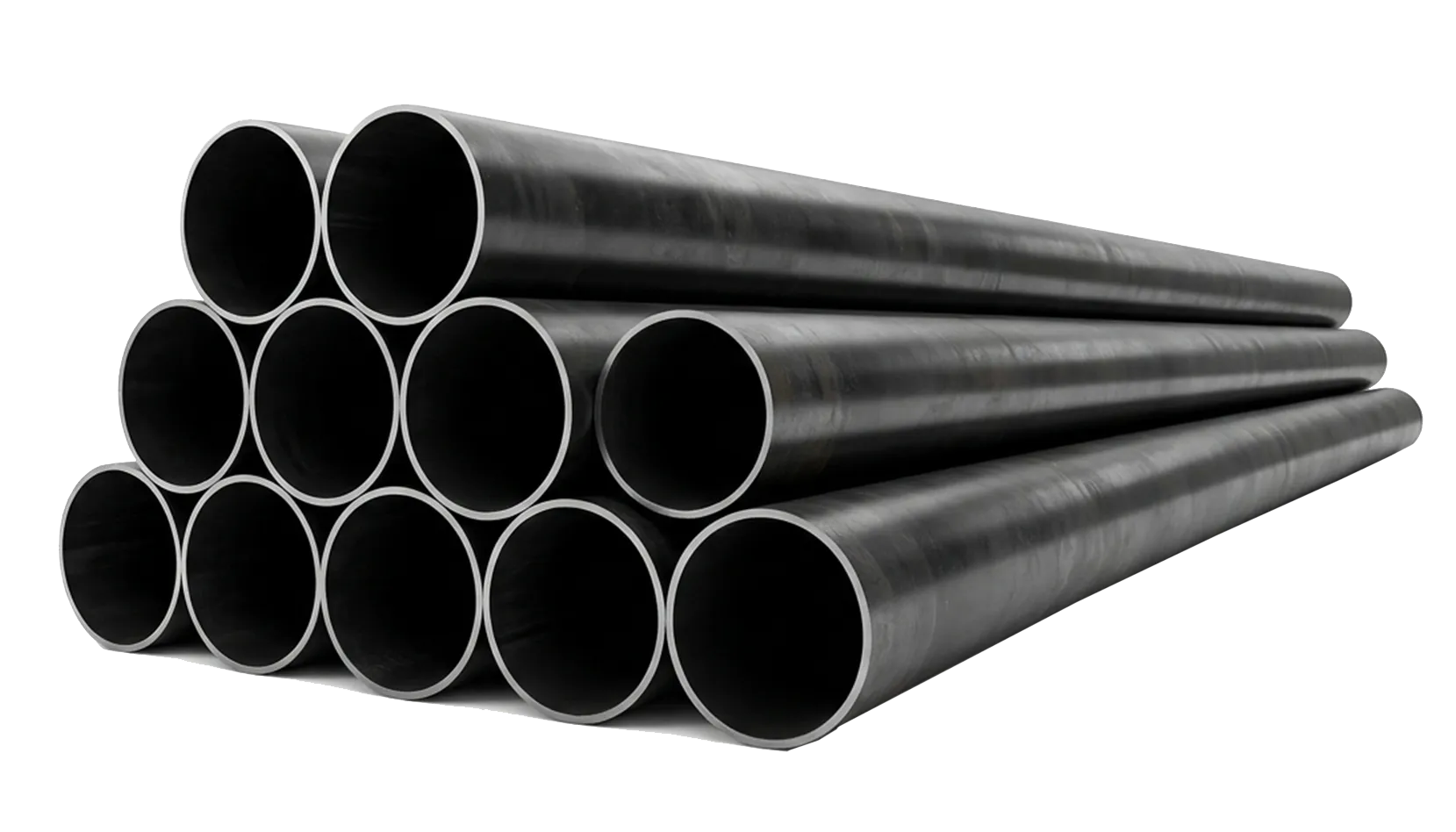

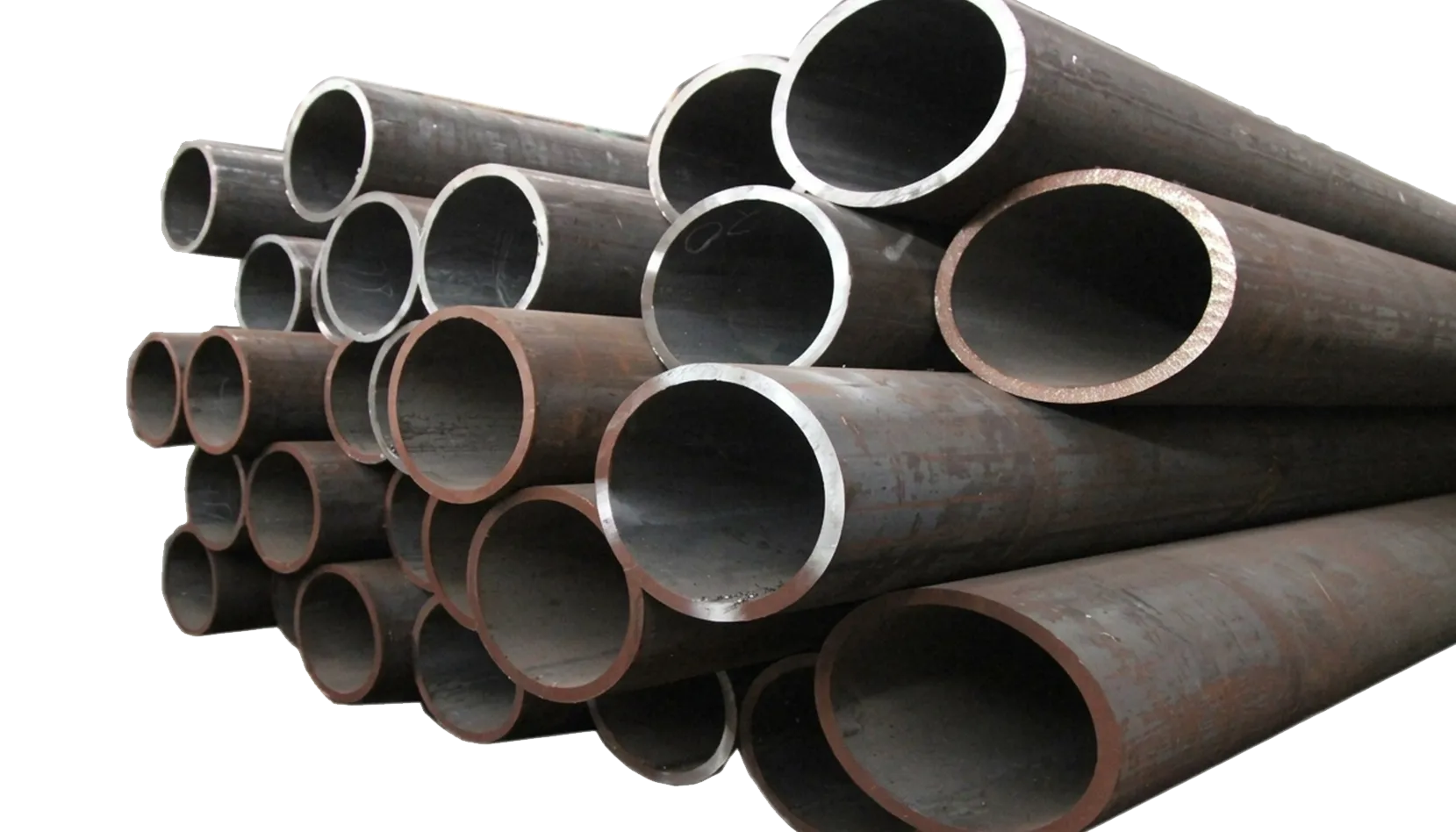

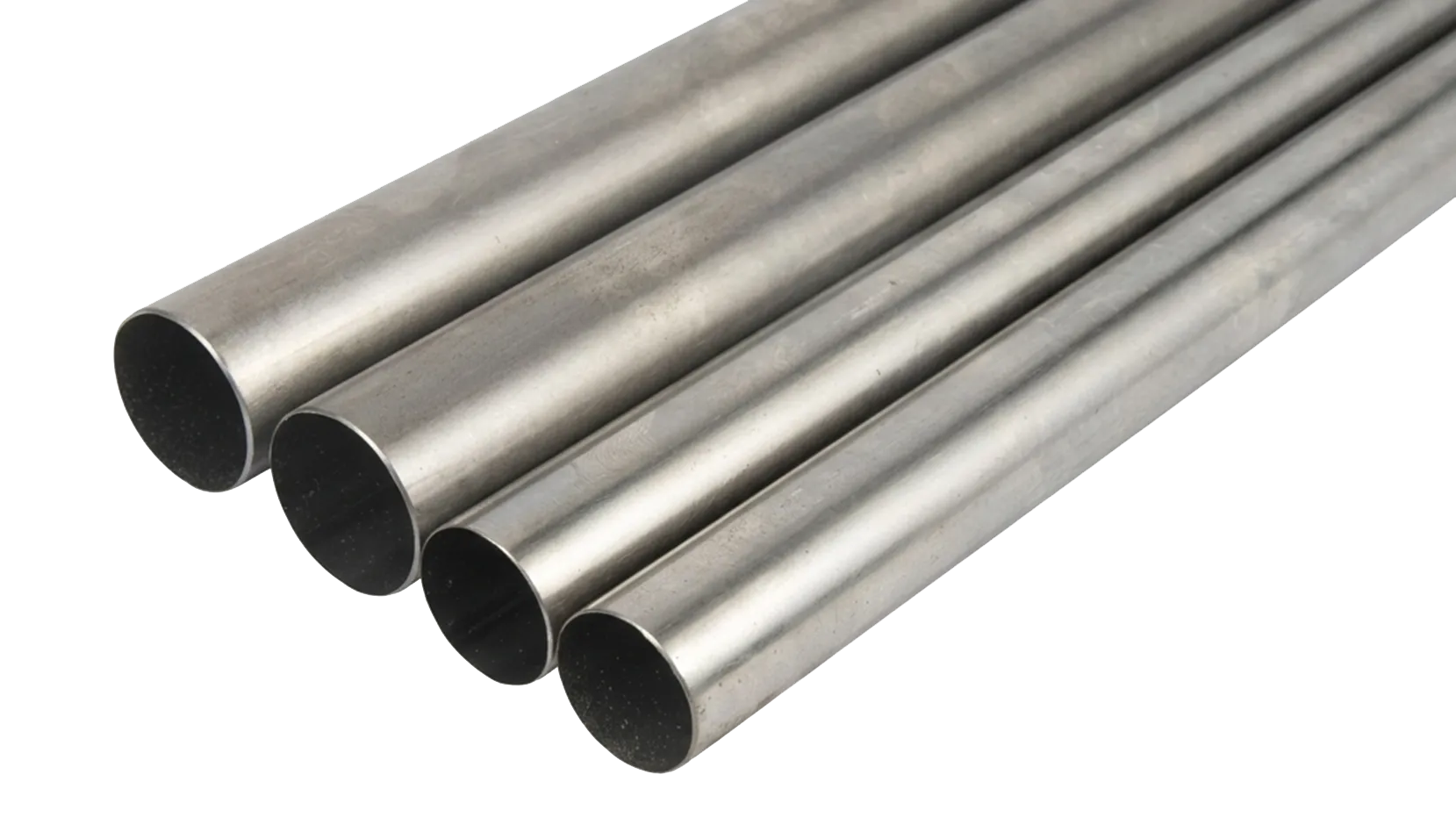

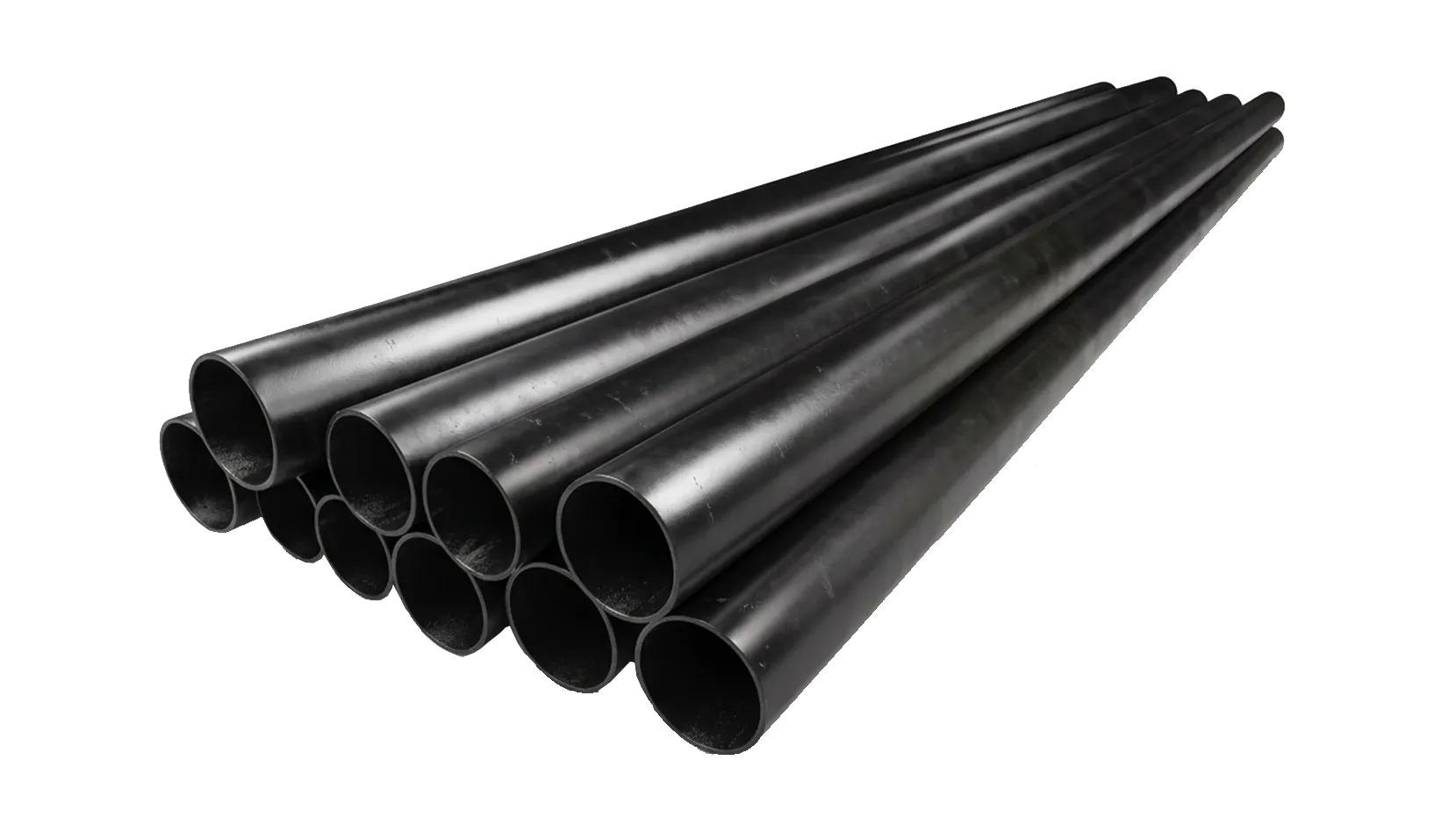

| Types | Seamless, ERW, Welded, Fabricated, CDW |
| Length | Single Random, Double Random, Required Length, Custom Size up to 12 Meter |

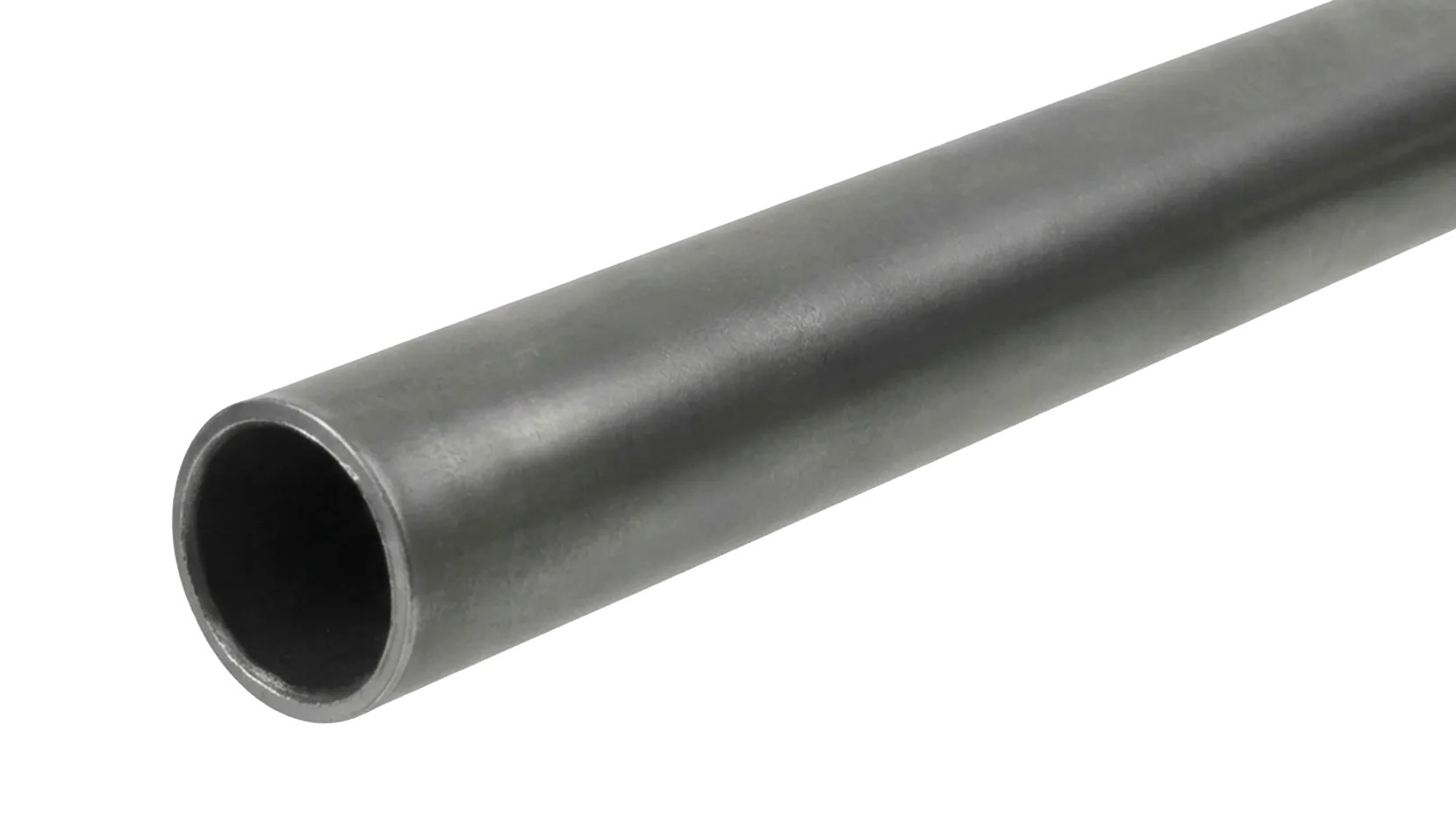

| Form | Round, Square, Rectangular, Coiled, U Shape, Pan Cake Coils, Hydraulic |
| End | Plain End, Beveled End, Threaded |
| Grades | ASTM A53 Grade B, ASTM A106 Grade B, ASTM A106 Grade C, ASTM A671, ASTM A672 CC60, CC65, CC70 |
Mechanical properties vary according to the selected grade and applicable product specification. The supplied Grade A, Grade B and Grade C values for carbon steel ERW pipe are shown below.
| Property | Grade A | Grade B | Grade C |
|---|---|---|---|
| Tensile Strength, min | 48,000 psi (330 MPa) | 60,000 psi (415 MPa) | 70,000 psi (485 MPa) |
| Yield Strength, min | 30,000 psi (205 MPa) | 35,000 psi (240 MPa) | 40,000 psi (275 MPa) |
The applicable grade and product standard should be confirmed before final procurement.
Carbon steel pipes are supplied in different size ranges depending on the manufacturing process. The available size range extends beyond the standard category range for selected seamless, ERW and SAW configurations.
| Pipe Type | Size Range |
|---|---|
| Seamless Pipe | 1/2" NB to 60" NB |
| ERW Pipe | 1/2" NB to 24" NB |
| SAW Pipe | 16" NB to 100" NB |
| Wall Thickness | Schedule 20 to Schedule XXS |
| Heavy Wall | Up to 250 mm thickness |
Carbon steel pipes are supplied according to the applicable material and dimensional requirements stated in the purchase specification.
| Standard / Specification | Product / Requirement |
|---|---|
| ASTM | Carbon steel pipe specifications |
| ASME | Applicable engineering and dimensional requirements |
| API | Applicable oil and gas piping requirements |
| ASTM A53 | Carbon steel pipe |
| ASTM A106 | Seamless carbon steel pipe |
| ASTM A333 | Carbon steel pipe for low-temperature service |
| ASTM A671 | Electric-fusion-welded pipe |
| ASTM A672 | Electric-fusion-welded pipe, including CC60, CC65 and CC70 |
| IS 1239 | Steel tubes |
| IS 3589 | Steel pipes |
The following dimensional data covers selected carbon steel welded pipe sizes and schedule configurations.
| NB | OD | Size | S40 | S80 | XS/80S | XXS |
|---|---|---|---|---|---|---|
| 20 | 26.67 | 3/4 | 2.87 | 3.91 | 3.91 | 7.82 |
| 25 | 33.4 | 1 | 3.38 | 4.55 | 4.55 | 9.09 |
| 32 | 42.16 | 1 1/4 | 3.56 | 4.85 | 4.85 | 9.7 |
| 40 | 48.26 | 1 1/2 | 3.68 | 5.08 | 5.08 | 10.2 |
| 50 | 60.33 | 2 | 3.91 | 5.54 | 5.54 | 11.1 |
| 65 | 73.03 | 2 1/2 | 5.16 | 7.01 | 7.01 | 14 |
| 100 | 114.3 | 4 | 6.02 | 8.56 | 8.56 | 17.1 |
| 150 | 168.3 | 6 | 7.11 | 11 | 10.97 | 22 |
| 300 | 323.9 | 12 | 10.3 | 17.5 | 12.7 | 25.4 |
Carbon steel pipe grade selection depends on the applicable material standard, service conditions, dimensions and project specification.
For general industrial piping requirements, Carbon Steel A53 Grade B Pipe can be selected with the required pipe type, size, schedule and end finish. For seamless carbon steel piping requirements, Carbon Steel ASTM A106 Grade B Pipe is supplied according to the specified material and dimensional requirements.

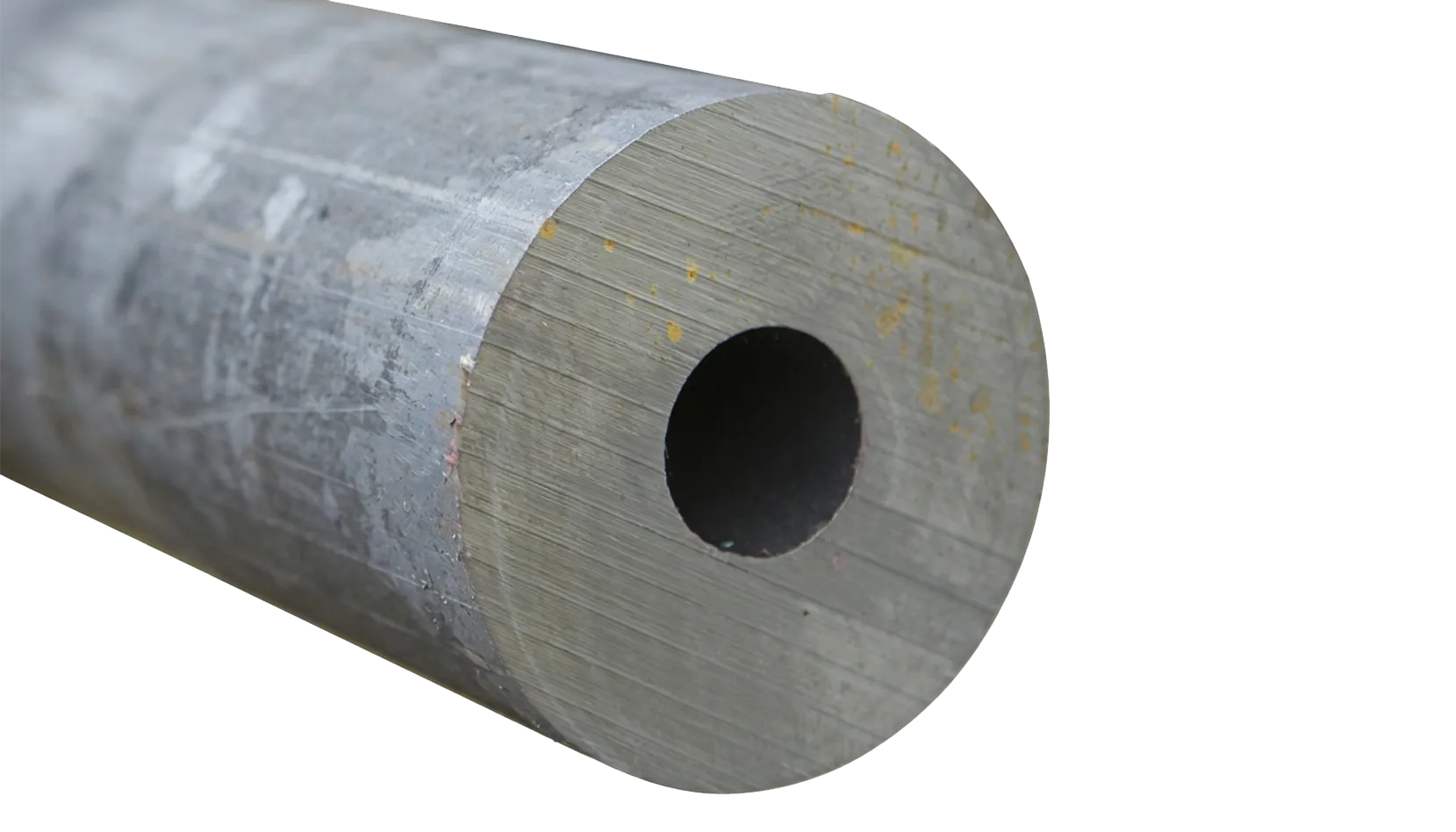

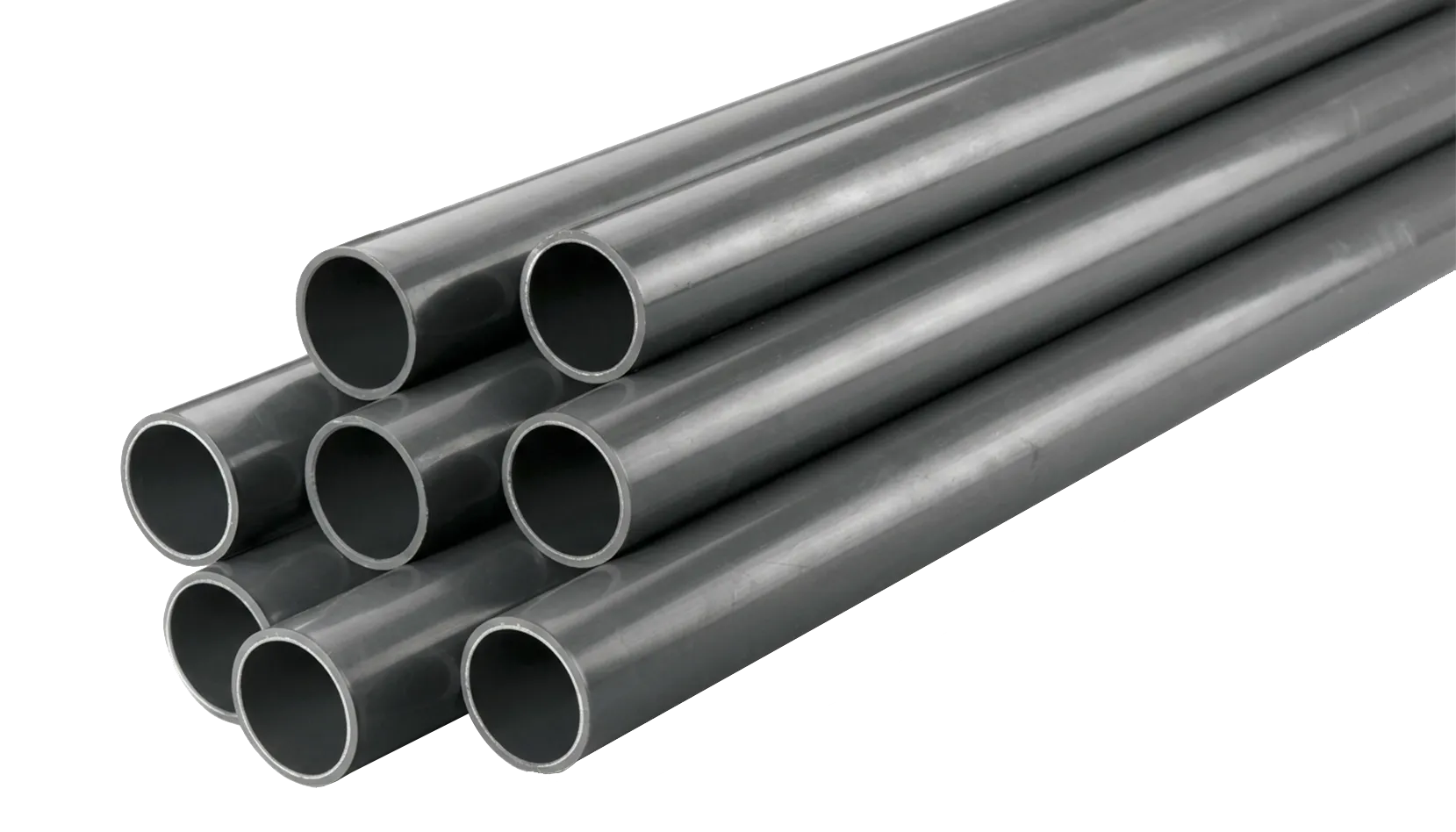

Additional configurations include Heavy Wall Thickness Pipe, Heat Exchanger Pipe, High-Temperature Pipe and Electropolished Pipe according to project requirements.
Forms:
End Finishes: Plain End, Beveled End, Threaded End
Size Range: 1/2" NB to 60" NB (depending on type)
Schedules according to applicable pipe standard
Ganpat Metal supplies carbon steel pipes in seamless, ERW, welded, fabricated and CDW configurations.
The manufacturing form can be selected according to the required diameter, wall thickness, grade, length and applicable project specification. Larger diameter requirements can also be considered through welded and SAW pipe configurations.
For Indian Standard piping requirements, Carbon Steel IS 1239 Pipe provides a dedicated option for projects requiring the IS 1239 specification. For water and sewage piping under the Indian Standard, Carbon Steel IS 3589 Pipe can be specified according to the required size and project specification.
Ganpat Metal manufactures and supplies carbon steel pipes for industrial buyers, EPC contractors, fabricators and project procurement requirements.
The supply can be specified by grade, pipe type, size, schedule, wall thickness, length, end finish, quantity and inspection requirement. This allows the pipe configuration to be matched to the purchase specification instead of using a generic product selection.
For higher-strength seamless pipe requirements, Carbon Steel ST 52 Seamless Pipe can be specified with the required size, thickness, length and quantity. Ganpat Metal holds ISO certification and MSME registration as part of its business and quality credentials.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Send the key technical and commercial details with your enquiry so the required carbon steel pipe can be quoted accurately.
