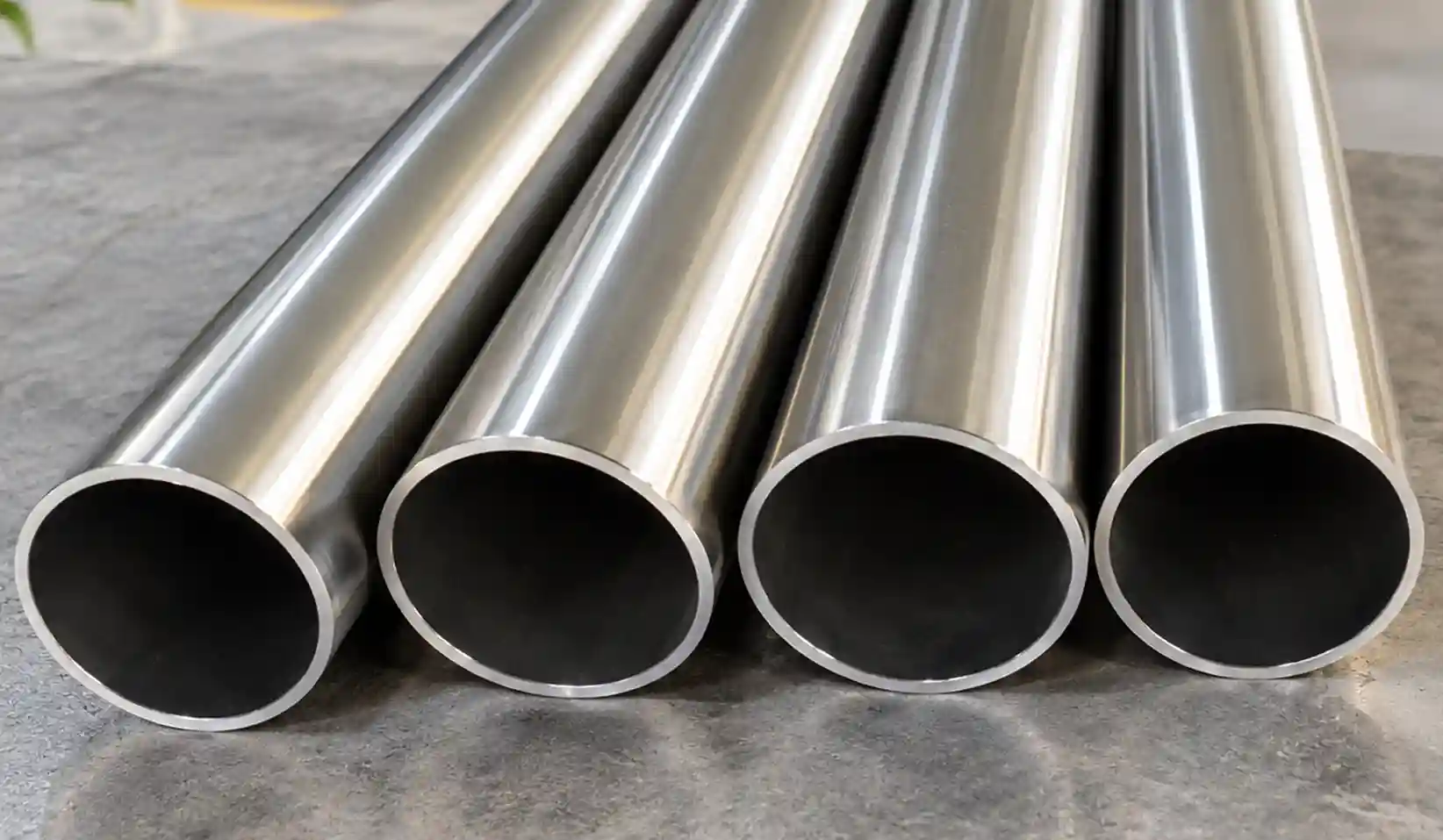

Ganpat Metal supplies ASTM A192 tubes for boiler and superheater applications requiring seamless carbon steel tubing for high-pressure service. Specified under ASTM A192 / ASME SA192, these tubes are selected according to the required outside diameter, wall thickness, mechanical properties and boiler design.
For procurement enquiries, specify the required tube dimensions, quantity, length and inspection documentation. These details help match the quotation to your boiler equipment specification and project requirements.
ASTM A192 tubes are seamless carbon steel boiler tubes intended for high-pressure service. The specification permits hot-finished and cold-finished manufacturing routes, subject to the applicable requirements.
Ganpat Metal handles enquiries for ASTM A192 / ASME SA192 tubes based on the grade and dimensional details specified by the buyer. When requesting a quotation, include the outside diameter, wall thickness, tube length and any project-specific inspection requirements.
| Specification | Details |
|---|---|
| ASTM Standard | ASTM A192 / ASTM A192M |
| ASME Designation | ASME SA192 |
| Material | Carbon steel |
| Product Form | Seamless boiler tubes |
| Service | High-pressure boiler and superheater service |
| Manufacturing Method | Seamless |
| Finishing Route | Hot-finished or cold-finished, as specified |
| Common Outside Diameter Range | 1/2 in to 7 in (12.7–177.8 mm) |
| Common Minimum Wall Thickness Range | 0.085–1.000 in (approximately 2.2–25.4 mm) |
| Chemical Composition | Carbon, manganese, phosphorus, sulfur and silicon |
| Mechanical Testing | Tensile, flattening, flaring and hardness tests, as applicable |
| Additional Examination | Hydrostatic or permitted nondestructive electric testing, as applicable |
| Documentation | As agreed for the order |
The chemical composition of ASTM A192 carbon steel is controlled to meet the material specification. The following values are taken from the supplied reference.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.06–0.18 |
| Manganese (Mn) | 0.27–0.63 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.035 max |
| Silicon (Si) | 0.25 max |
Mechanical properties are used to assess whether the material meets the specified requirements for boiler-tube service.
| Mechanical Property | Reference Value |
|---|---|
| Tensile Strength | 325 MPa minimum |
| Yield Strength | 180 MPa minimum |
| Elongation | 35% minimum |
Outside diameter and wall thickness determine whether a tube matches the equipment drawing, replacement specification or boiler-tube bundle design. ASTM A192 dimensions should be specified using the required diameter and wall thickness rather than relying on a generic pipe schedule designation.
When requesting ASTM A192 tubes, provide:
ASTM A192 tubes are manufactured using the seamless process. The specified finishing route determines the applicable manufacturing and heat-treatment requirements.
| Aspect | Details |
|---|---|
| Hot-finished tubes | Heat treatment is not required by the specification for hot-finished tubes. |
| Cold-finished tubes | Heat treatment is required after the final cold-finishing operation, at a temperature of 1200°F (650°C) or higher. |
| Dimensional inspection | Outside diameter, wall thickness and length should be checked against the applicable requirements. |
| Purchase specification | The required finishing route and supplementary conditions should be identified in the order. |
| Tube OD (in) | Tube OD (mm) | BWG 20 (0.035 in) | BWG 18 (0.049 in) | BWG 16 (0.065 in) | BWG 14 (0.083 in) | BWG 13 (0.095 in) | BWG 12 (0.109 in) | BWG 11 (0.120 in) |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 12.70 | 0.283 | 0.381 | 0.487 | 0.594 | 0.657 | 0.725 | 0.773 |
| 5/8 | 15.88 | 0.360 | 0.488 | 0.630 | 0.776 | 0.865 | 0.964 | 1.036 |
| 3/4 | 19.05 | — | 0.595 | 0.771 | 0.957 | 1.072 | 1.202 | 1.299 |
| 7/8 | 22.23 | — | 0.702 | 0.913 | 1.141 | 1.285 | 1.448 | 1.571 |
| 1 | 25.40 | — | 0.808 | 1.056 | 1.321 | 1.487 | 1.680 | 1.824 |
| 1 1/4 | 31.75 | — | 1.022 | 1.340 | 1.684 | 1.902 | 2.157 | 2.349 |
| 1 1/2 | 38.10 | — | 1.236 | 1.624 | 2.048 | 2.317 | 2.634 | 2.875 |
| 2 | 50.80 | — | — | 2.192 | 2.775 | 3.148 | 3.588 | 3.925 |
| 2 1/2 | 63.50 | — | — | 2.761 | 3.502 | 3.978 | 4.542 | 4.976 |
| 3 | 76.20 | — | — | — | 4.229 | 4.808 | 5.497 | 6.027 |
| Tube OD (in) | BWG 10 (0.134 in) | BWG 9 (0.148 in) | BWG 8 (0.165 in) | BWG 7 (0.180 in) | BWG 6 (0.203 in) | BWG 5 (0.220 in) |
|---|---|---|---|---|---|---|
| 1/2 | 0.826 | 0.873 | — | — | — | — |
| 5/8 | 1.120 | 1.198 | — | — | — | — |
| 3/4 | 1.412 | 1.521 | — | — | — | — |
| 7/8 | 1.722 | — | — | — | — | — |
| 1 | 1.998 | 2.169 | 2.363 | 2.526 | — | — |
| 1 1/4 | 2.583 | 2.816 | 3.085 | 3.313 | 3.650 | 3.882 |
| 1 1/2 | 3.169 | 3.464 | 3.807 | 4.100 | 4.538 | 4.845 |
| 2 | 4.340 | 4.759 | 5.250 | 5.674 | 6.316 | 6.771 |
| 2 1/2 | 5.512 | 6.055 | 6.693 | 7.249 | 8.094 | 8.696 |
| 3 | 6.683 | 7.350 | 8.137 | 8.823 | 9.871 | 10.622 |
Inspection helps establish whether the supplied tubes meet the material and dimensional requirements specified for the project.
Depending on the applicable standard and agreed purchase terms, the inspection plan may include:
ASTM A192 tubes are specified for boiler and superheater systems designed for high-pressure service. Typical application areas include:
Ganpat Metal accepts export enquiries for industrial metal products. For ASTM A192 tubes, overseas buyers should provide the required dimensions, quantity, tube length, inspection documentation and delivery destination.
Export enquiries may be received from:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Product availability, shipping arrangements and destination-specific documentation should be confirmed for each order.
To prepare a quotation that matches your boiler-tube specification, share:
Providing these details helps clarify the material, dimensions and documentation needed for your order. For other carbon steel tube grades and specifications, visit our Carbon Steel Tubes category.
