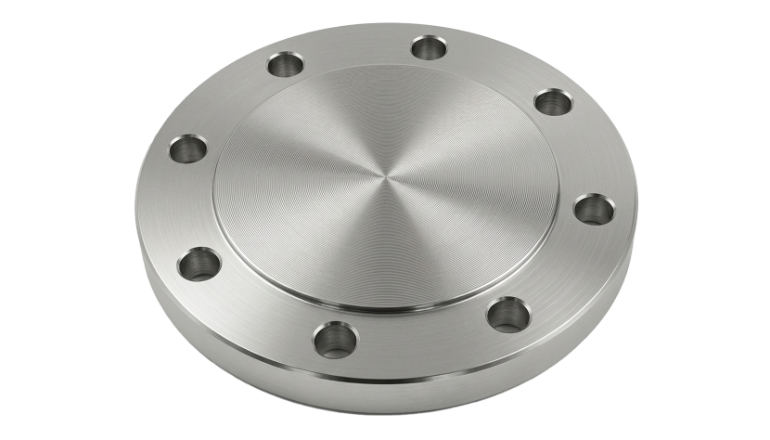

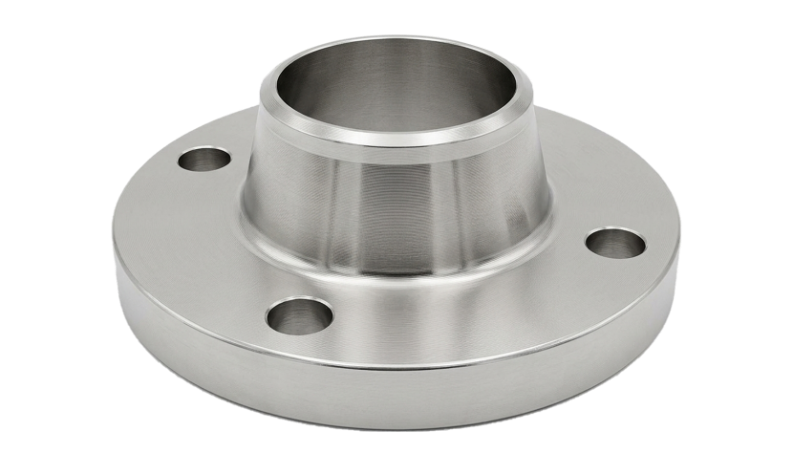

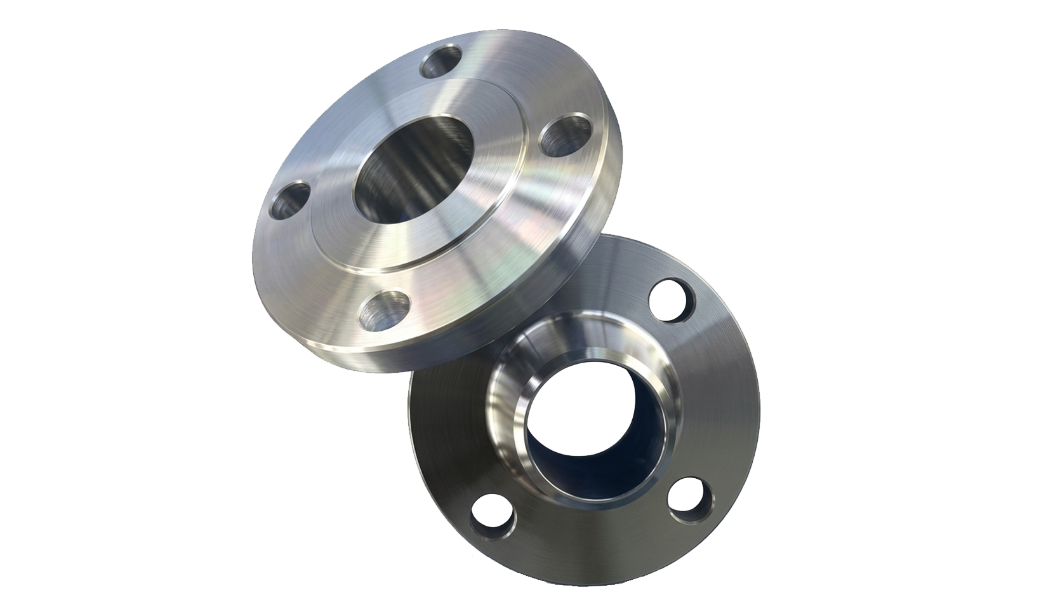

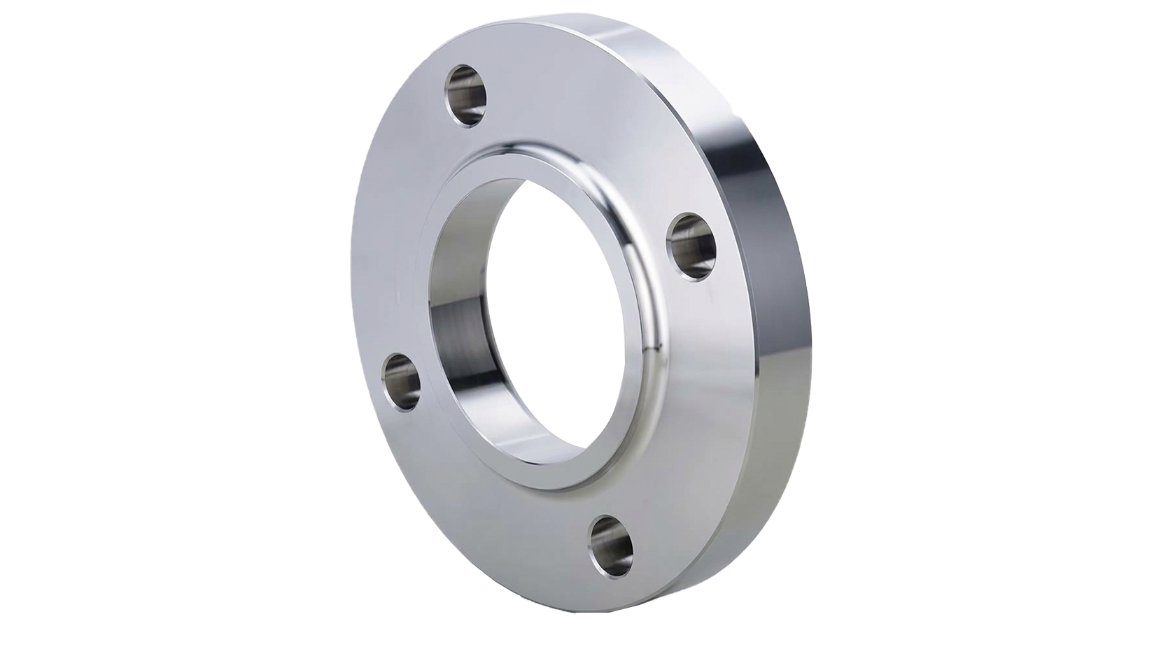

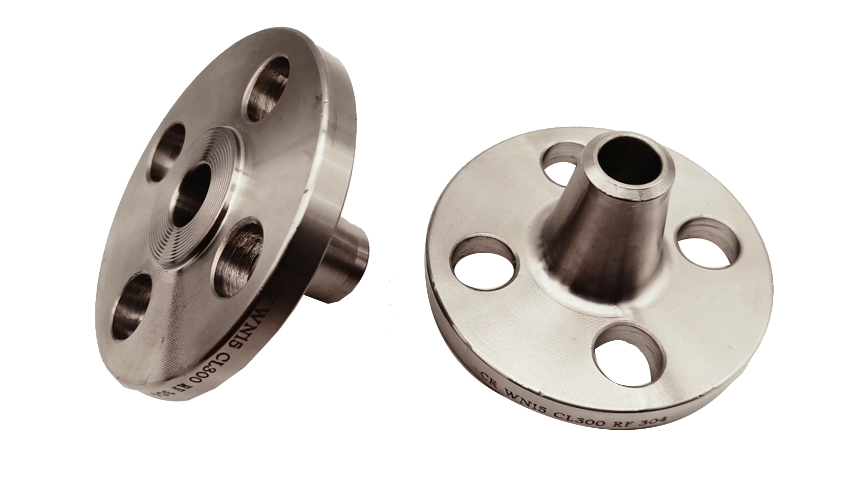

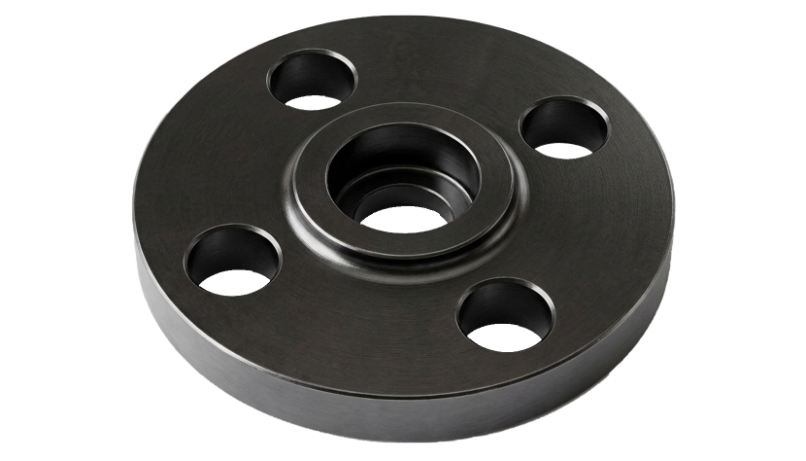

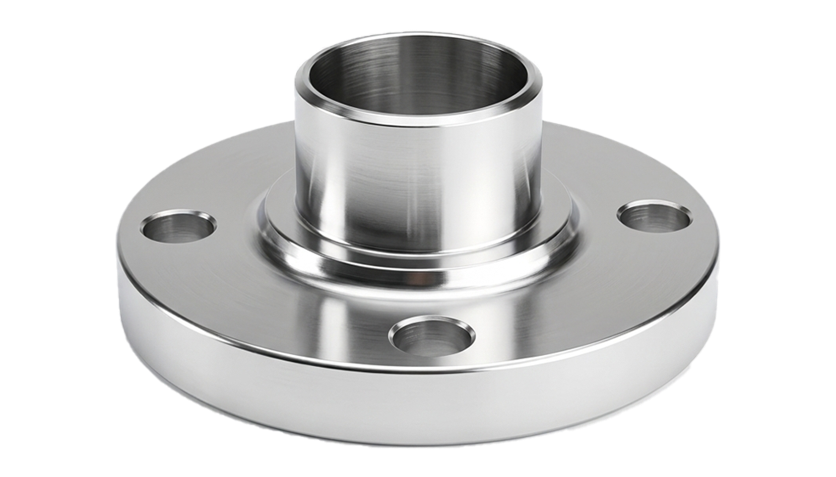

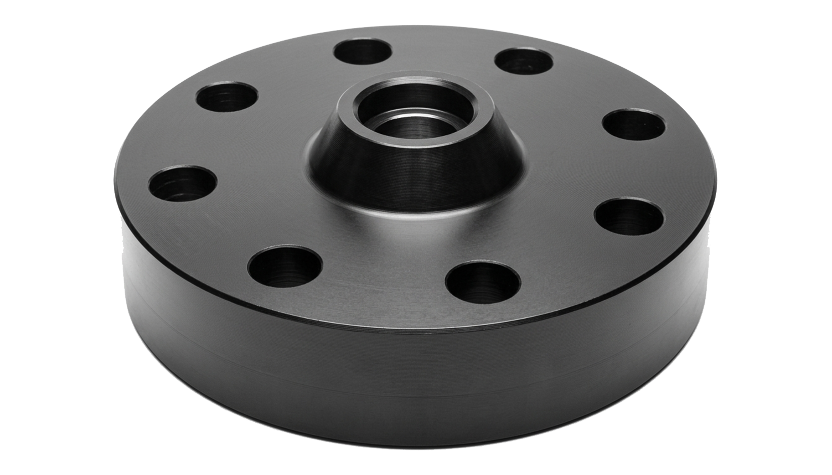

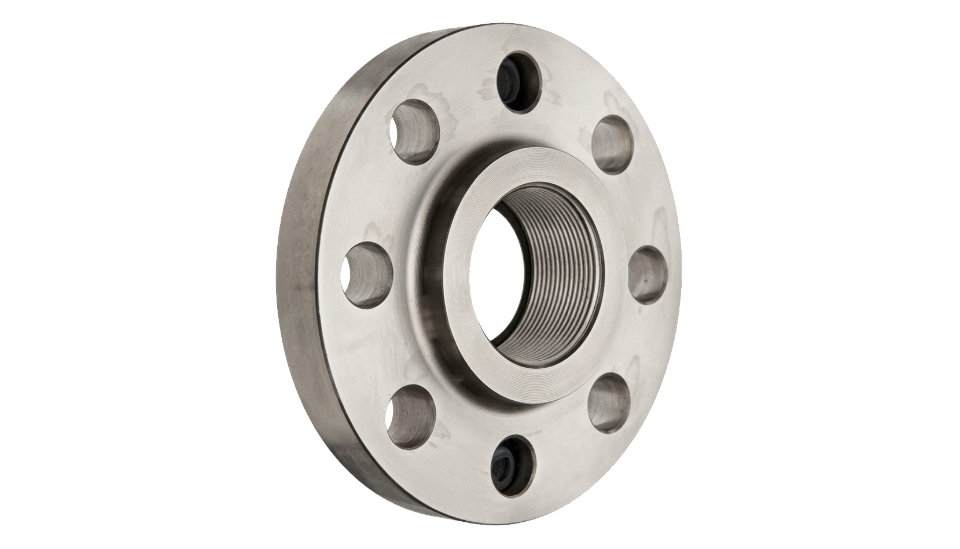

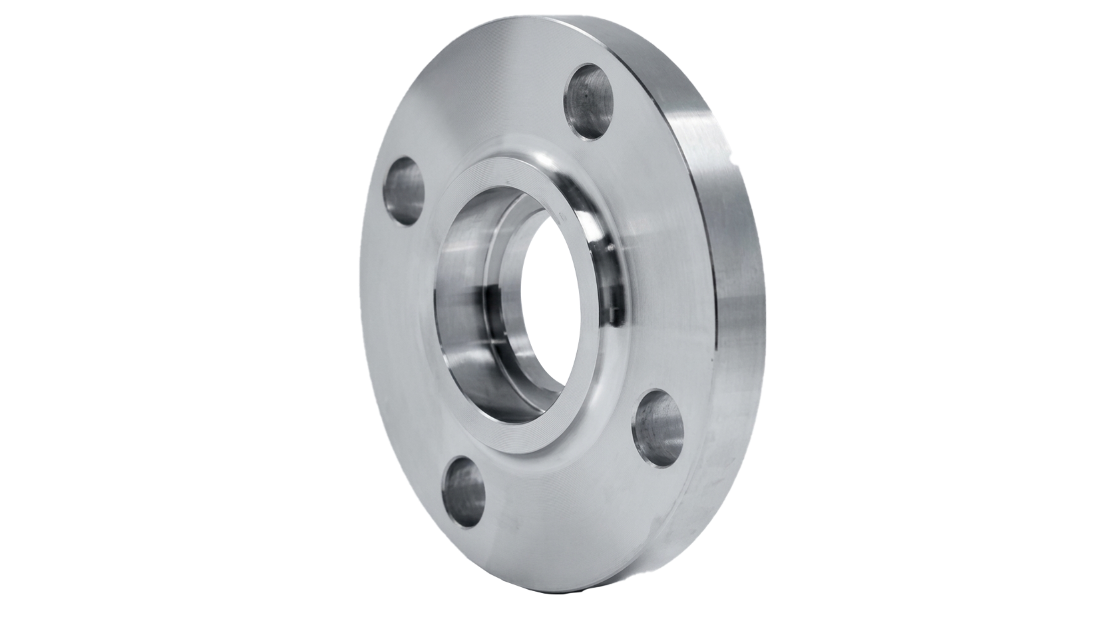

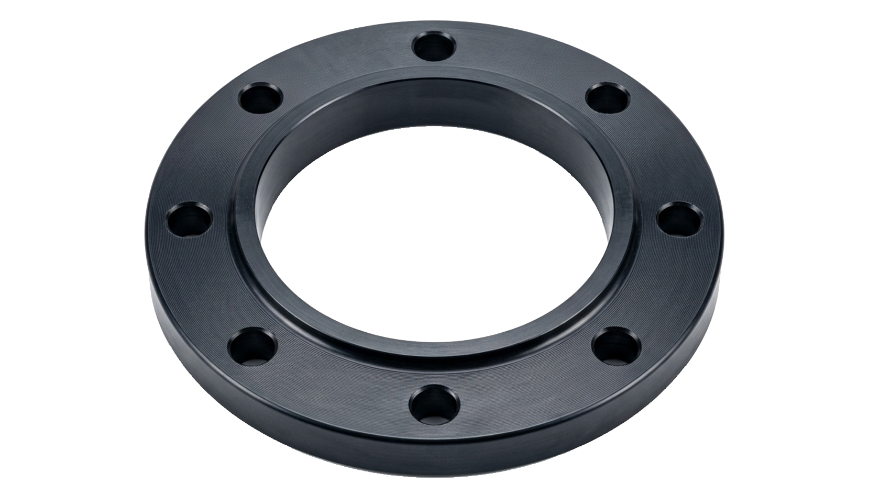

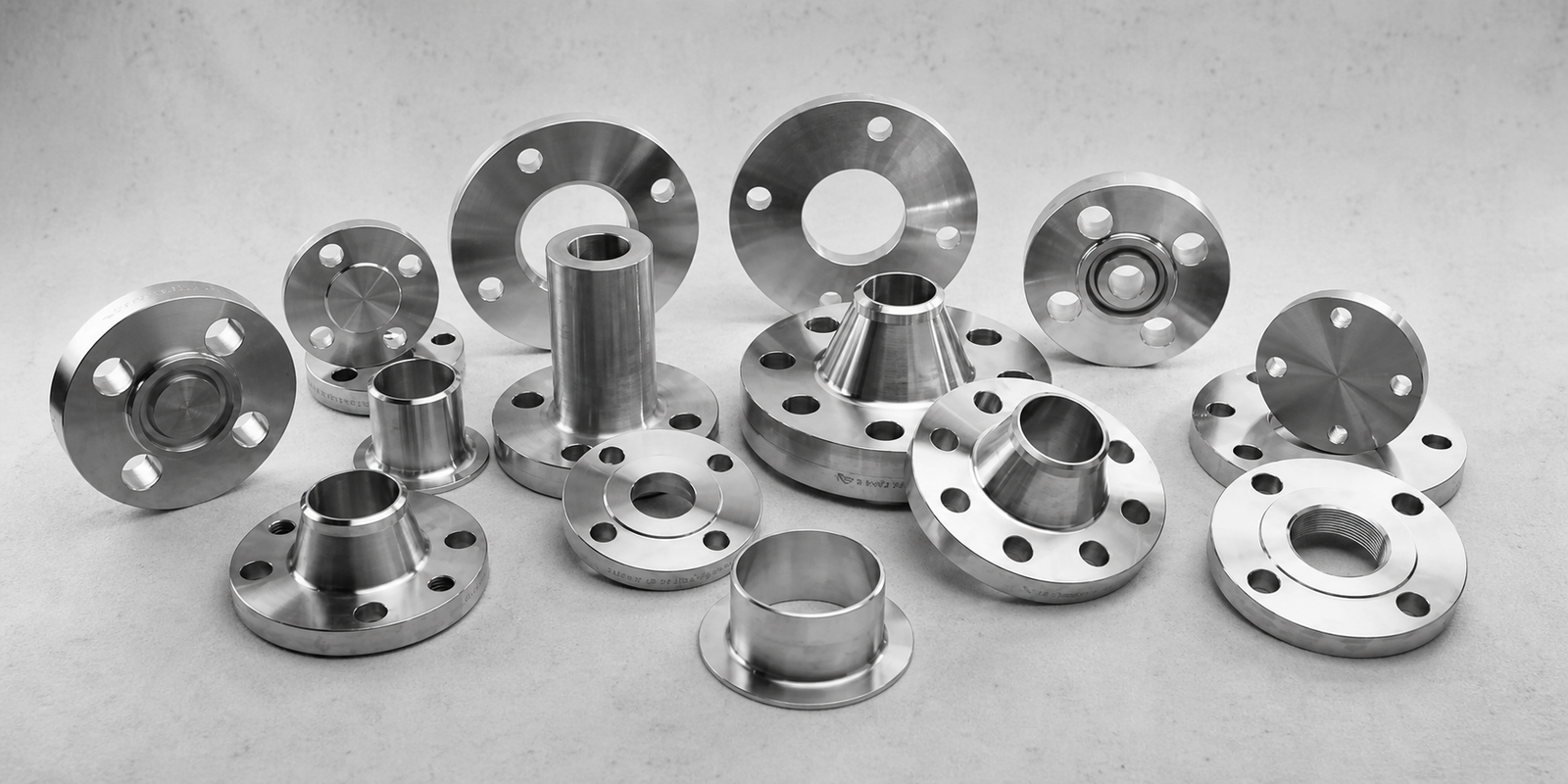

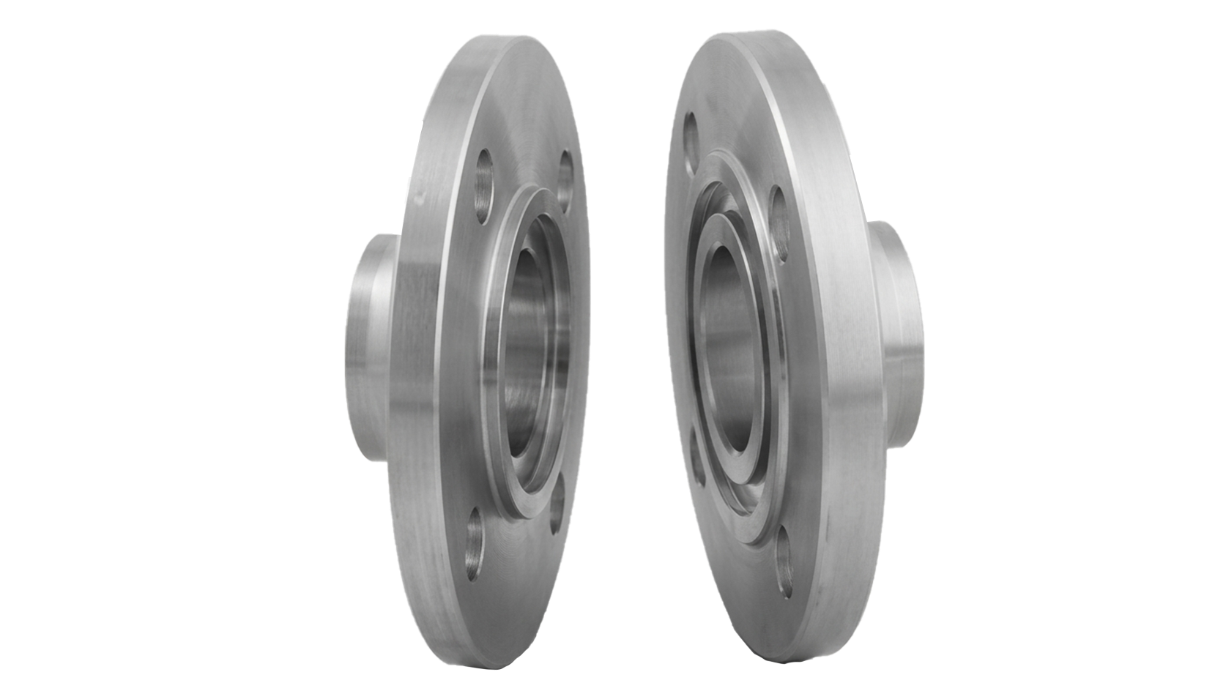

Ganpat Metal is an ASTM A182 F5 Flanges Manufacturer in India, supplying alloy steel F5 flanges to ASTM A182 / ASME SA182 specifications. We offer F5 Weld Neck, Slip On, Blind, Socket Weld, Threaded, Lap Joint, RTJ, Spectacle Blind, Plate and Reducing Flanges.
ASTM A182 F5 Flanges are available in ½″ to 36″ sizes, pressure classes from 150# to 2500#, and PN6 to PN64 configurations with FF, RF and RTJ face options.
| Specification | Details |
|---|---|
| Material Specification | ASTM A182 / ASME SA182 |
| Grade | F5 |
| Dimensions | ASME B16.5, B16.47 Series A & B, B16.48, BS 4504, BS 10, EN 1092, DIN |
| Standards | ANSI, ASME, BS, DIN, EN |
| Size | ½″ to 36″ |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| PN Rating | PN6, PN10, PN16, PN25, PN40, PN64 |
| Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Standard | Types | Pressure Class |
|---|---|---|
| ASME/ANSI B16.5 | Weld Neck, Slip On, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, RTJ | 150–2500 |
| ASME/ANSI B16.47 | Weld Neck, Blind, Series A & B | 75–900 |
| ASME/ANSI B16.36 | Weld Neck, Slip On, Threaded | 300–2500 |
| BS 4504 | Weld Neck, Hubbed Slip On, Hubbed Threaded, Plate, Loose Plate, Blank | PN2.5–PN400 |
| BS 1560 | Weld Neck, Socket Weld, Slip On, Blind, Screwed, Lapped | 150–2500 |
| BS 10 | Weld Neck, Plate Slip On, Screwed, Slip On Boss, Blind | D, E, F, H |
| DIN | DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627–2673 | PN6–PN100 |
| Material | Casting Equivalent | DIN | DIN W. Number | Common / UNS | Forging Specification |
|---|---|---|---|---|---|
| 5Cr-1/2Mo | A217-C5 | 12CRMO195 | 1.7362 | K41545 | A182-F5/F5a |
Application: High-temperature refinery service.
| Grade | C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| A182 F5 | 0.15 | 0.3–0.6 | 0.5 | 0.03 | 0.03 | 4–6 | 0.044–0.65 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation % |
|---|---|---|---|
| A182 F5 | 275 | 485 | 20 |
The supplied F5 dimensional data covers pipe schedules from Sch 10 through Sch 160, along with STD, XS and XX Heavy configurations.
| NPS | O.D. | Sch 10 | STD | Sch 40 | Sch 80 | Sch 160 | XX Hvy |
|---|---|---|---|---|---|---|---|
| ½ | 0.84 | 0.083 | 0.109 | 0.109 | 0.147 | 0.188 | 0.294 |
| 1 | 1.315 | 0.109 | 0.133 | 0.133 | 0.179 | 0.25 | 0.358 |
| 2 | 2.375 | 0.109 | 0.154 | 0.154 | 0.218 | 0.344 | 0.436 |
| 4 | 4.5 | 0.12 | 0.237 | 0.237 | 0.337 | 0.531 | 0.674 |
| 6 | 6.625 | 0.134 | 0.28 | 0.28 | 0.432 | 0.719 | 0.864 |
| 8 | 8.625 | 0.148 | 0.322 | 0.322 | 0.5 | 0.906 | 0.875 |
| 10 | 10.75 | 0.165 | 0.365 | 0.365 | 0.594 | 1.125 | 1 |
| 12 | 12.75 | 0.18 | 0.375 | 0.406 | 0.688 | 1.312 | 1 |
| 16 | 16 | 0.25 | 0.375 | 0.5 | 0.844 | 1.594 | ... |
| 20 | 20 | 0.25 | 0.375 | 0.594 | 1.031 | 1.969 | ... |
| 24 | 24 | 0.25 | 0.375 | 0.688 | 1.219 | 2.344 | ... |
| 30 | 30 | 0.312 | 0.375 | ... | ... | ... | ... |
| 36 | 36 | 0.312 | 0.375 | 0.75 | ... | ... | ... |
For the supplied F5 Orifice Flange tolerance data:
| Dimension | Tolerance |
|---|---|
| Outside Diameter | ≤24″: ±1/16″ (1.6 mm); >24″: ±1/8″ (3.2 mm) |
| Inside Diameter | 10″ and smaller: ±1/32″ (0.8 mm); 12″–18″: +1/8″ (3.2 mm); 20″ and larger: -1/16″ (1.6 mm) |
| Contact Face Diameter | 1/16″ RF: ±1/32″ (0.8 mm); 1/4″ RF/T&G: ±1/64″ (0.4 mm) |
| Hub Base Diameter | ≤24″: ±1/16″ (1.6 mm); >24″: ±1/8″ (3.2 mm) |
| Hub Diameter at Welding Point | 5″ and smaller: +3/32″ / -1/32″; 6″ and larger: +5/32″ / -1/32″ |
| Drilling | Bolt circle ±1/16″; bolt-hole spacing ±1/32″ |
| Thickness | 18″ and smaller: +1/8″ / -0; 20″ and larger: +3/16″ / -0 |
| Hub Length | 10″ and smaller: ±1/16″; 12″ and larger: ±1/8″ |
Select Flange options below and click the "Calculate Weight" button to reveal exact weight.
ASTM A182 F5 flanges are supplied in ½″ to 36″ sizes according to the applicable flange standard, pressure class and configuration.
Available requirements include:
Ganpat Metal supplies F5 alloy steel flanges through controlled forging, heat treatment and machining processes according to the specified material and dimensional requirements.
Manufacturing can include face finishing, bore machining, bolt-hole drilling, marking and final dimensional inspection.
Ganpat Metal is an ASTM A182 F5 Flanges Manufacturer and Supplier in India, offering F5 flanges in different sizes, pressure classes, face types and configurations.
We supply ½″ to 36″ F5 flanges with 150# to 2500# pressure classes and applicable ANSI, ASME, BS, DIN and EN dimensional standards. Requirements can be supplied with applicable inspection and material documentation.
Ganpat Metal is ISO certified and MSME registered, supporting domestic and project-based requirements for alloy steel flanges.
United Arab Emirates
Saudi Arabia
Qatar
Oman
Kuwait
Bahrain
United States
United Kingdom
Germany
Netherlands
Italy
Singapore
Malaysia
Australia
South Africa
Send your F5 flange requirement with the size, quantity, flange type, pressure class, face type, applicable standard, testing requirements and delivery location.
Ganpat Metal can provide quotations according to your specified technical and commercial requirements.
For other alloy steel flange grades, chemical composition, pressure classes and sizes, visit our alloy steel flanges page.
