Ganpat Metal manufactures and supplies ASTM A182 F11 Flanges in India for industrial piping and high-temperature applications. These alloy steel flanges are available in ½″ to 36″ sizes, pressure classes from 150# to 2500#, and FF, RF and RTJ face configurations.
| Specification | Details |
|---|---|
| Material Standard | ASTM A182 / ASME SA182 |
| Grade | ASTM A182 F11 |
| Size | ½″ to 36″ |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Pressure Rating | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN-1092, DIN |
| Flange Face | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Standards | ANSI, ASME, BS, DIN, EN |
| Standard | Flange Types | Pressure Class |
|---|---|---|
| ASME/ANSI B16.5 | Welding Neck, Slip On, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, RTJ | 150–2500 |
| ASME/ANSI B16.47 | Welding Neck, Blind, Series A & B | 75–900 |
| ASME/ANSI B16.36 | Welding Neck, Slip On, Threaded | 300–2500 |
| BS4504 Sec. 3.1 | Welding Neck, Hubbed Slip On, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Blank | PN2.5–PN40 |
| BS4504 Part 1 | Welding Neck, Hubbed Slip-On, Hubbed Threaded, Plate, Blank | PN2.5–PN400 |
| BS1560 BOSS | Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped | 150–2500 |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind | Tables D, E, F, H |
| DIN | DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627–2638, 2673 | PN6–PN100 |
| Grade | C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| ASTM A182 F11 | 0.05–0.15 | 0.3–0.6 | 0.5–1.0 | 0.03 | 0.03 | 1–1.5 | 0.044–0.65 |
The supplied material data should be verified against the applicable ASTM specification before publication.
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation |
|---|---|---|---|
| ASTM A182 F11 | 205 | 415 | 20% |
The supplied pressure-rating data for ASTM A182 F11 blind flanges varies according to temperature and pressure class.
| Temperature | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
|---|---|---|---|---|---|---|---|
| -29 to 38 | 15.9 | 41.4 | 55.2 | 82.7 | 124.1 | 206.8 | 344.7 |
| 50 | 15.3 | 40.0 | 53.4 | 80.0 | 120.1 | 200.1 | 333.5 |
| 100 | 13.3 | 34.8 | 46.4 | 69.6 | 104.4 | 173.9 | 289.9 |
| 150 | 12.0 | 31.4 | 41.9 | 62.8 | 94.2 | 157.0 | 261.6 |
| 200 | 11.2 | 29.2 | 38.9 | 58.3 | 87.5 | 145.8 | 243.0 |
| 250 | 10.5 | 27.5 | 36.6 | 54.9 | 82.4 | 137.3 | 228.9 |
| 300 | 10.0 | 26.1 | 34.8 | 52.1 | 78.2 | 130.3 | 217.2 |
| 325 | 9.3 | 25.5 | 34.0 | 51.0 | 76.4 | 127.4 | 212.3 |
| 350 | 8.4 | 25.1 | 33.4 | 50.1 | 75.2 | 125.4 | 208.9 |
| 375 | 7.4 | 24.8 | 33.0 | 49.5 | 74.3 | 123.8 | 206.3 |
| 400 | 6.5 | 24.3 | 32.4 | 48.6 | 72.9 | 121.5 | 202.5 |
| 425 | 5.5 | 23.9 | 31.8 | 47.7 | 71.6 | 119.3 | 198.8 |
| 450 | 4.6 | 23.4 | 31.2 | 46.8 | 70.2 | 117.1 | 195.1 |
Pressure values and applicable design limits should be confirmed against the project specification and governing standard before use.
Select Flange options below and click the "Calculate Weight" button to reveal exact weight.

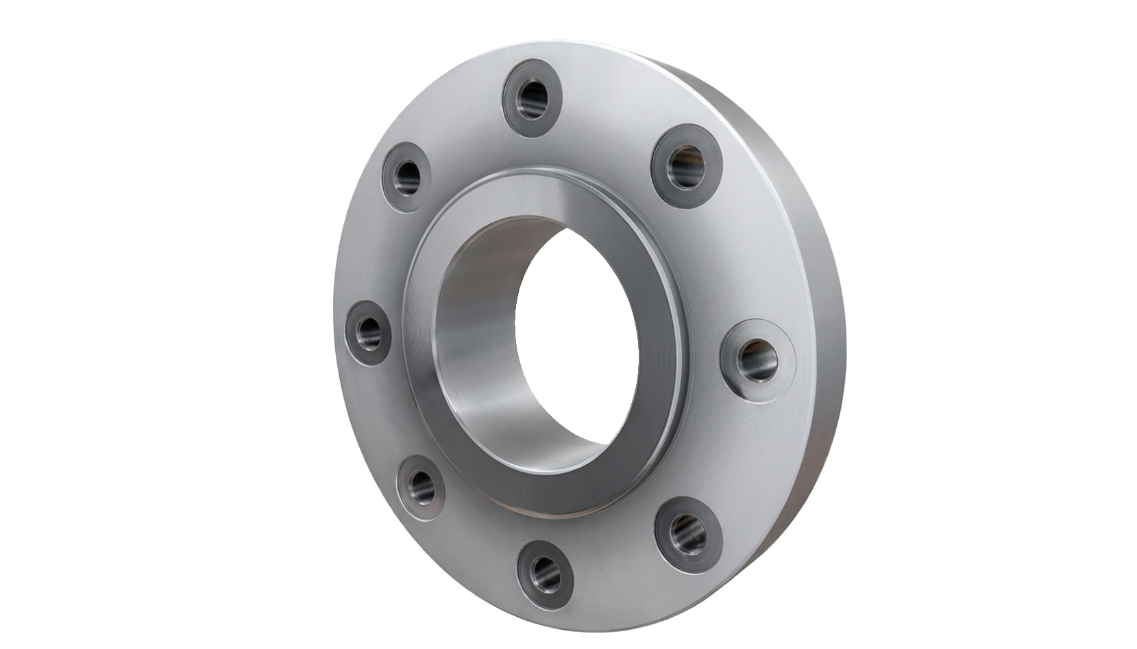

For standard piping connections where installation and alignment are required.

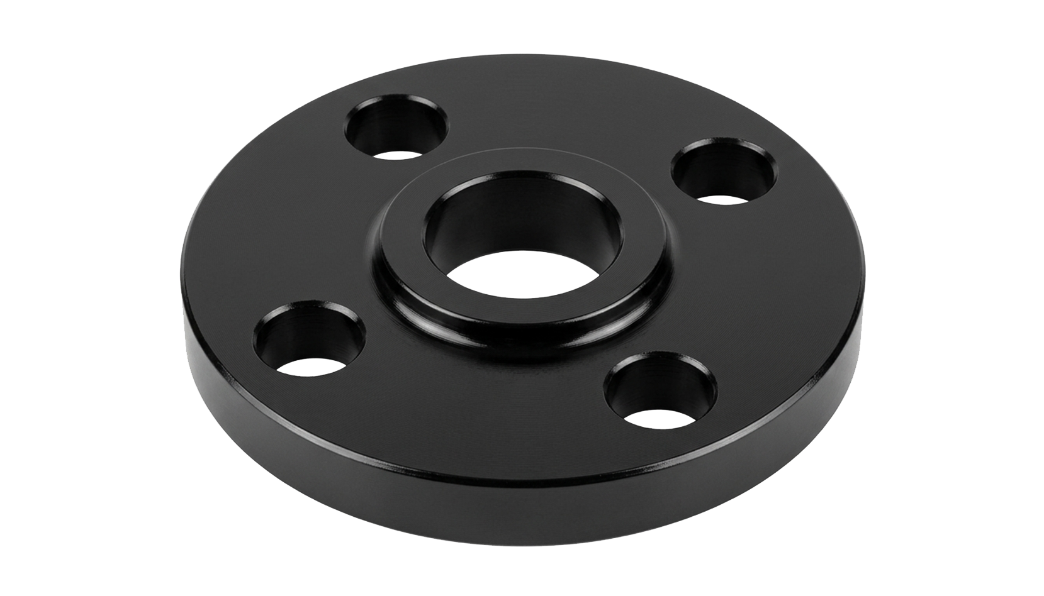

For smaller-diameter piping connections.

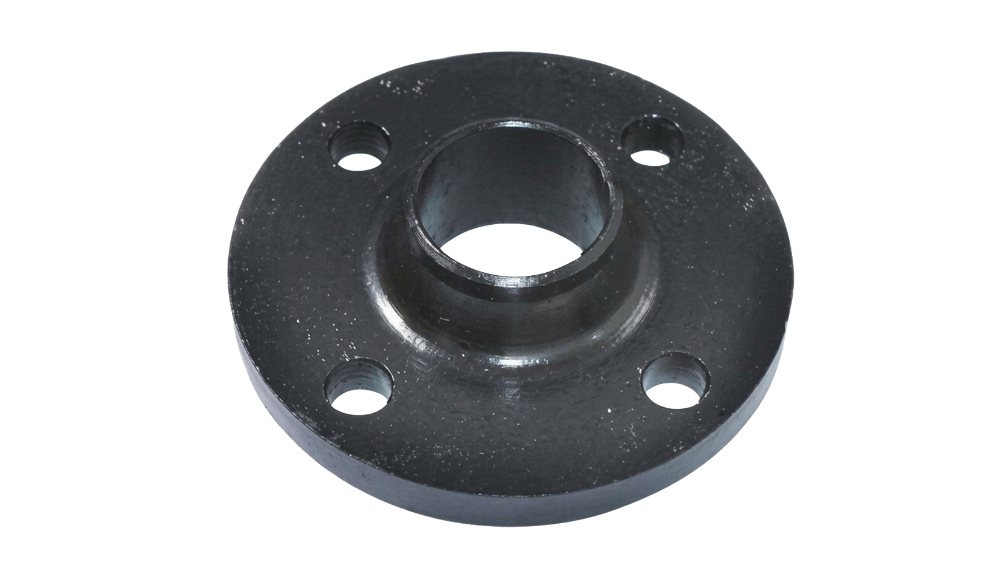

For high-pressure and high-temperature piping systems.

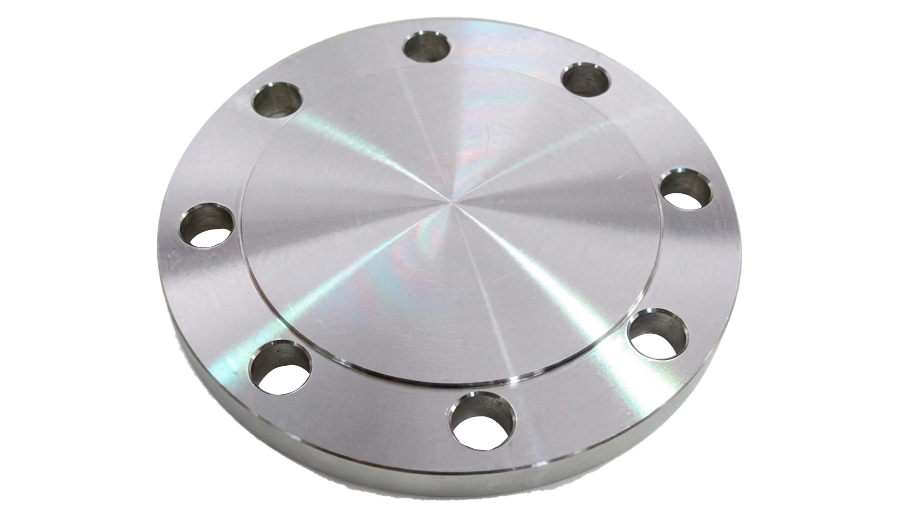

For closing pipe ends, valves and equipment connections.

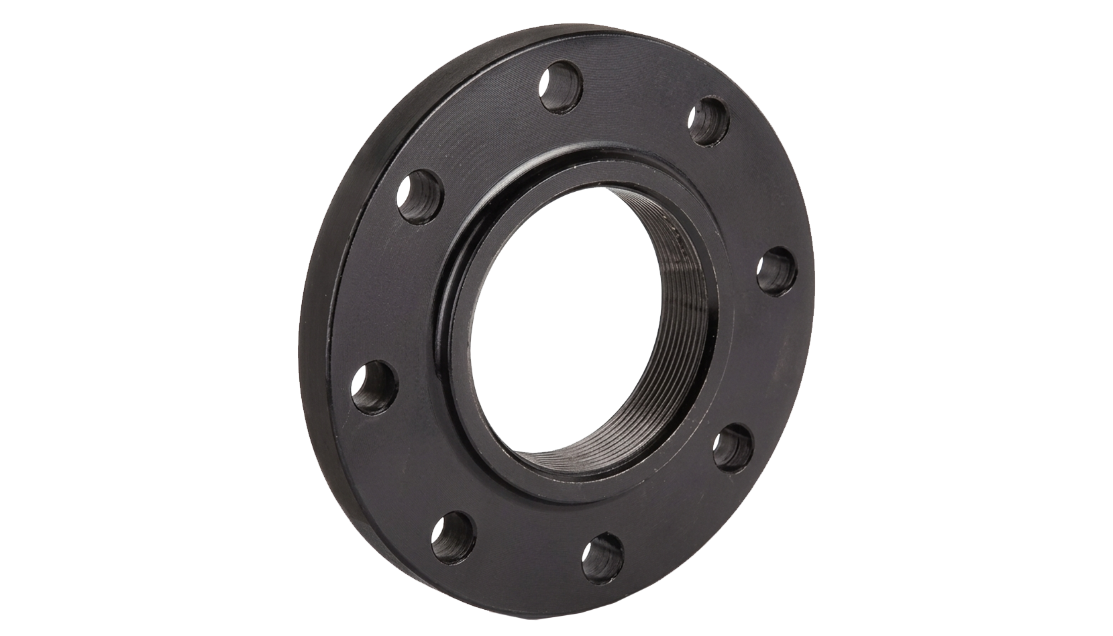

For threaded piping arrangements.

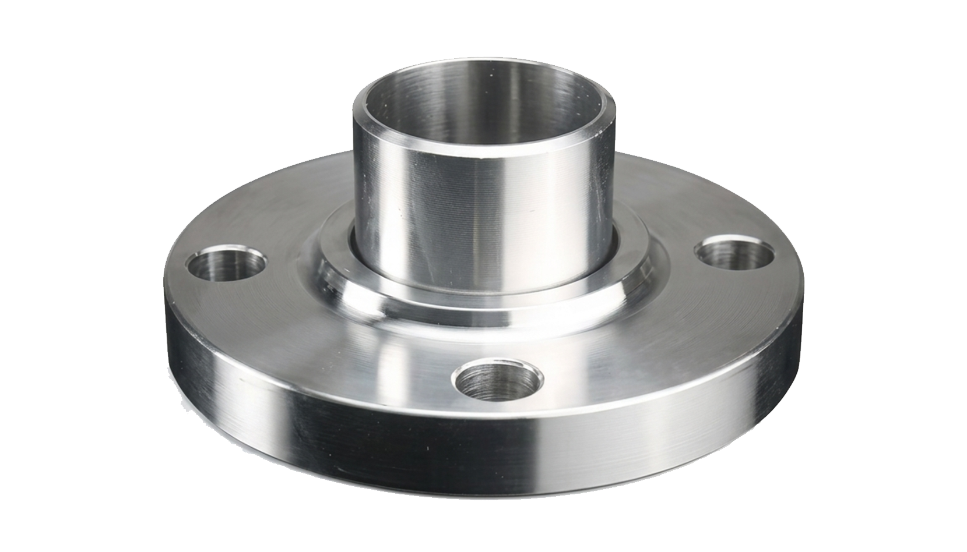

For applications requiring repeated assembly and dismantling.

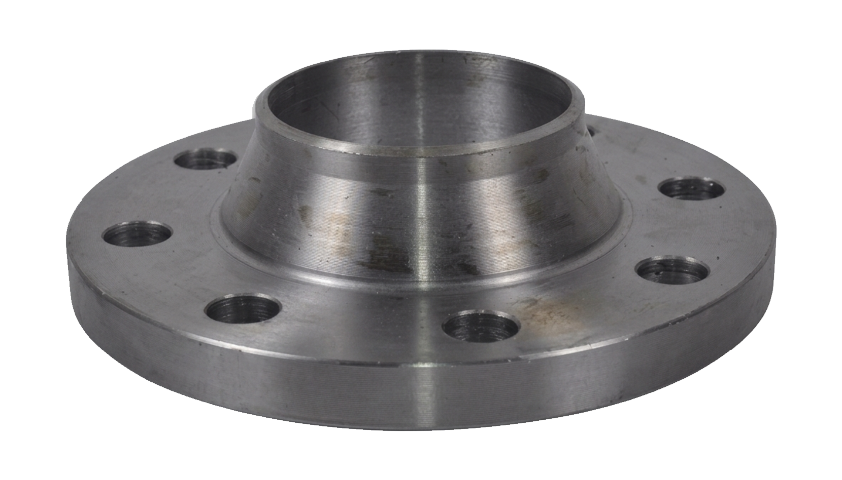

For connections requiring an extended neck.
For compatible piping and fabrication requirements.

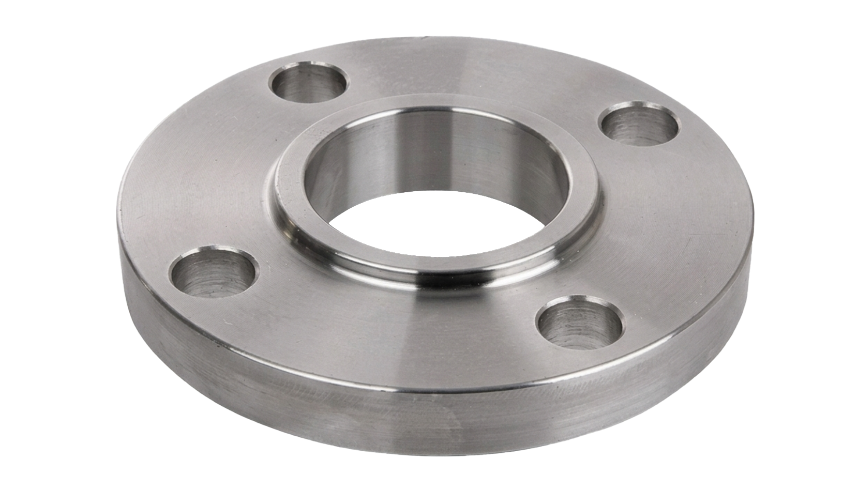

For piping assemblies incorporating flow measurement equipment.

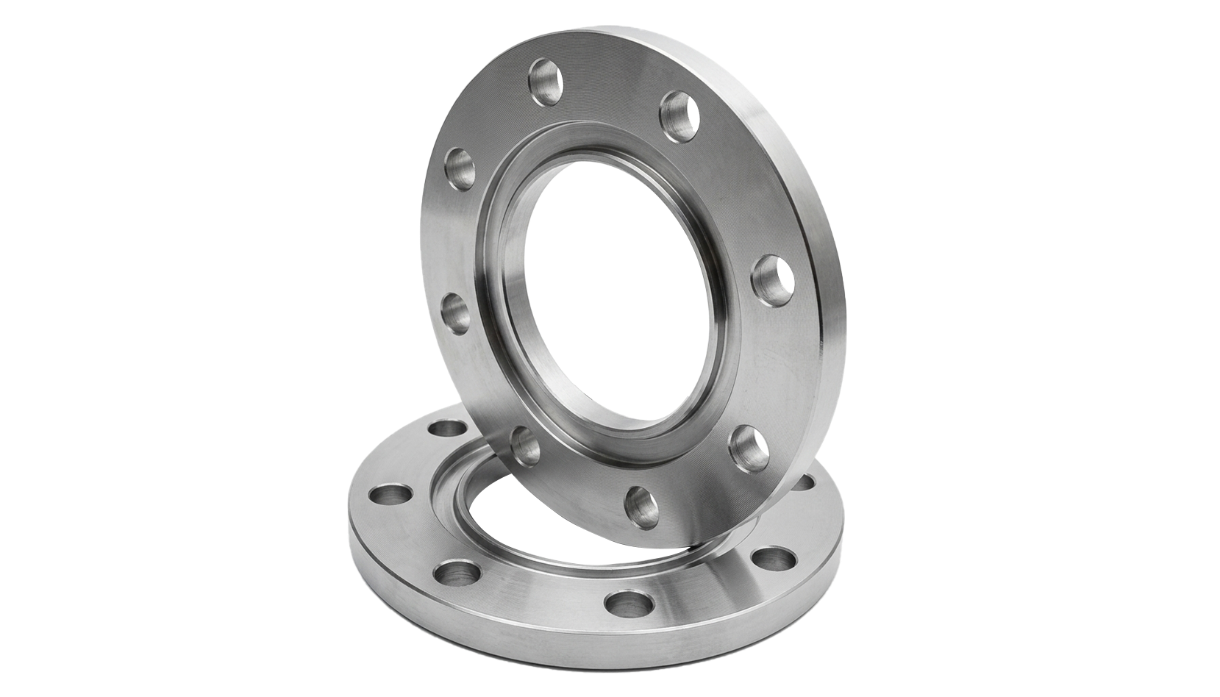

For metal-ring sealing arrangements.

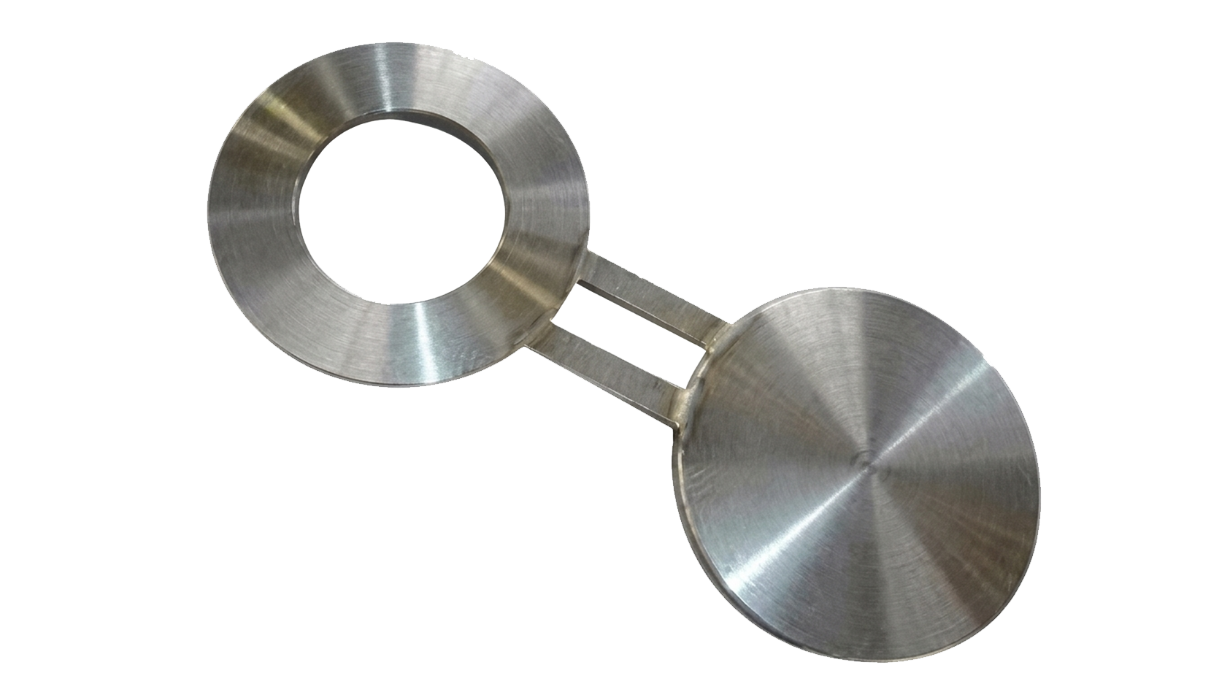

For positive isolation of piping sections.

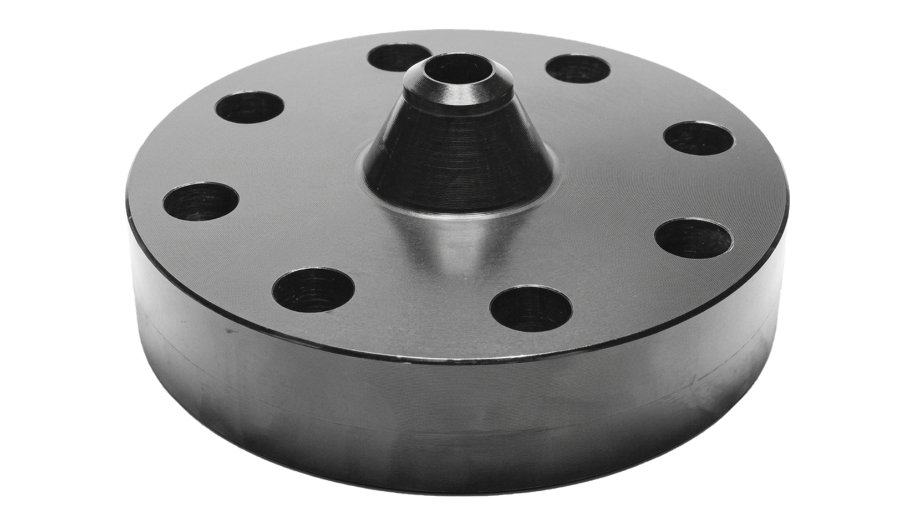

For connecting different nominal pipe sizes.
ASTM A182 F11 flanges are available from ½″ to 36″ according to the required flange configuration and dimensional standard.
Applicable dimensions can include:
Dimensional requirements are manufactured according to the applicable ASME B16.5, ASME B16.47, B16.48, BS4504, BS10, EN-1092 or DIN standard.
Ganpat Metal manufactures ASTM A182 F11 flanges according to the specified grade, size, pressure class, flange type, face configuration and dimensional standard.
The manufacturing process can include:
Inspection is carried out according to applicable material, dimensional and purchase requirements.
Inspection can include:
ASTM A182 F11 flanges are used in:
Ganpat Metal manufactures and supplies ASTM A182 F11 Flanges in India in different sizes, pressure classes, flange types and face configurations. Products can be supplied according to applicable ASTM A182 / ASME SA182 and dimensional standards.
We support industrial orders requiring specific flange configurations, dimensions, inspection requirements and documentation.
Ganpat Metal supplies ASTM A182 F11 Flanges for domestic and international requirements based on the specified product, quantity and delivery schedule.
Export destinations include:
United States
United Kingdom
United Arab Emirates
Saudi Arabia
Qatar
Oman
Germany
Italy
Singapore
Send your required size, pressure class, flange type, face type, quantity and applicable standard to Ganpat Metal for an ASTM A182 F11 Flanges quotation.
For other alloy steel flange grades, chemical composition, mechanical properties and sizes, visit our alloy steel flanges page.
